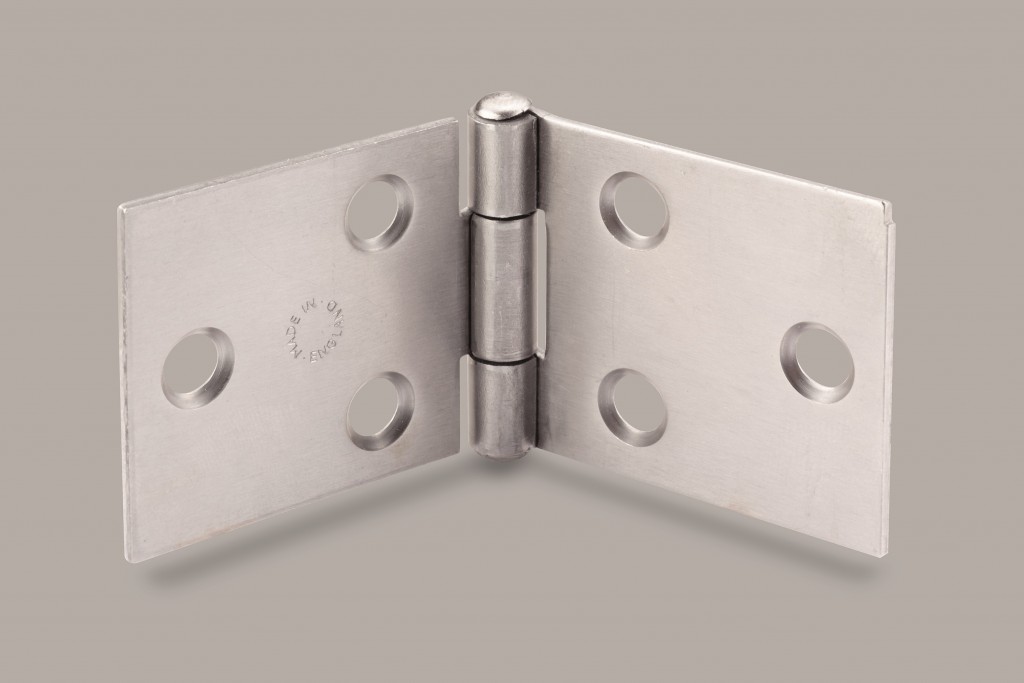

Backflap Hinge

Name: Backflap Hinge
Brand: Nico
SKU: DHC-NC4025
Availability: InStock

SKU: DHC-NC4025

£83.20 – £134.40
. You save

size

finish

Clear

SKU: DHC-NC4025 Categories: Cabinet Hinges, Hinges Brand: Nico

Features & Benefits

Made in Britain
Easy and simple to fit
Quality materials
Alternative finishes available

These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.

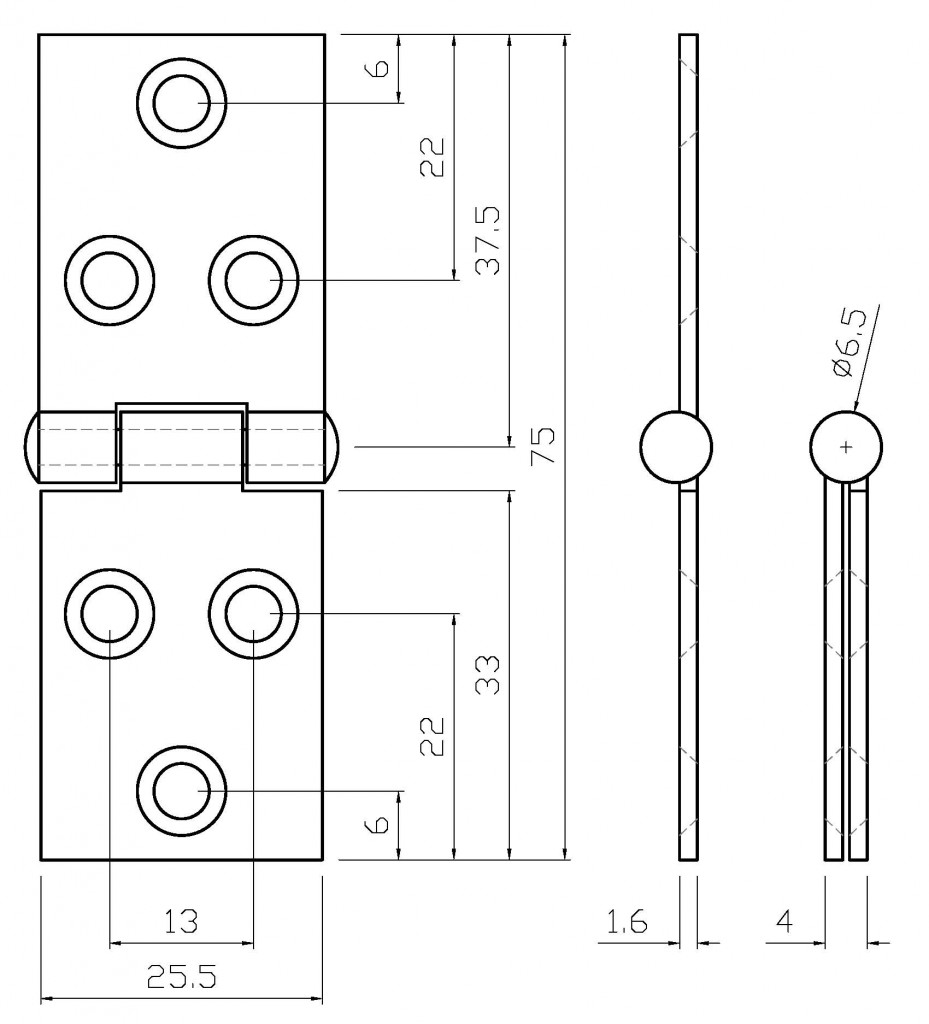

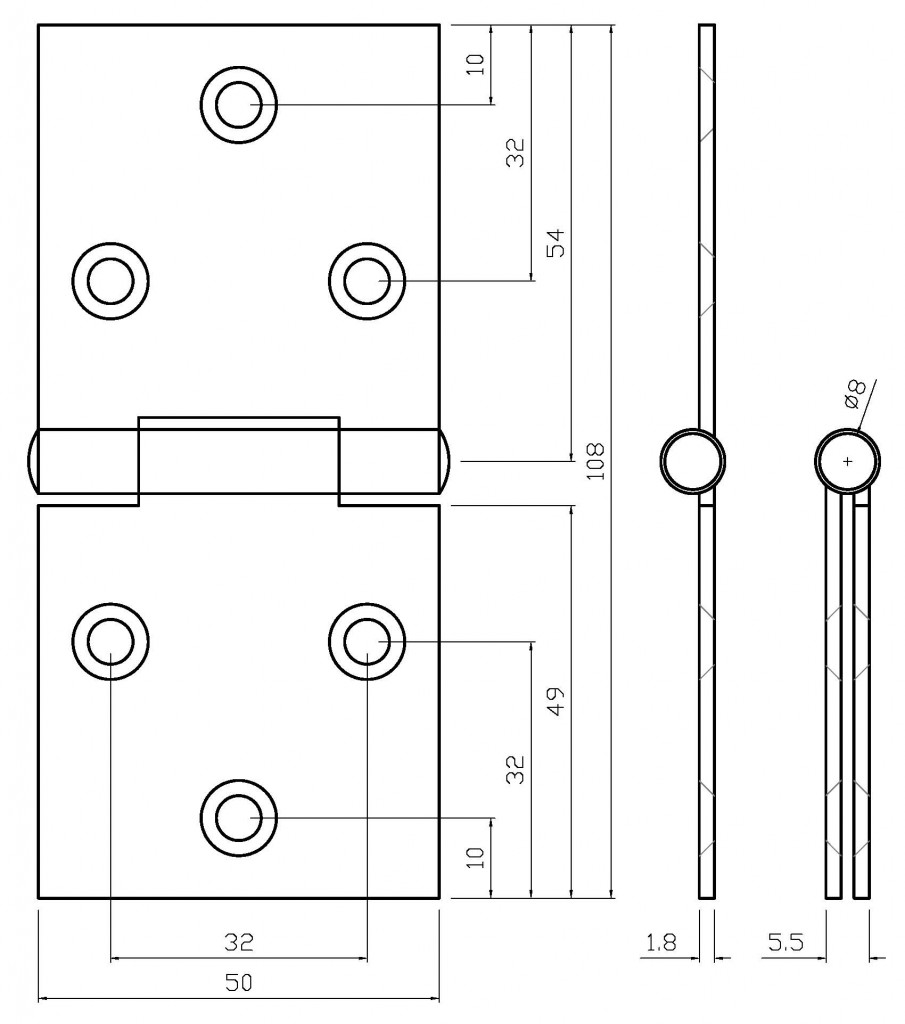

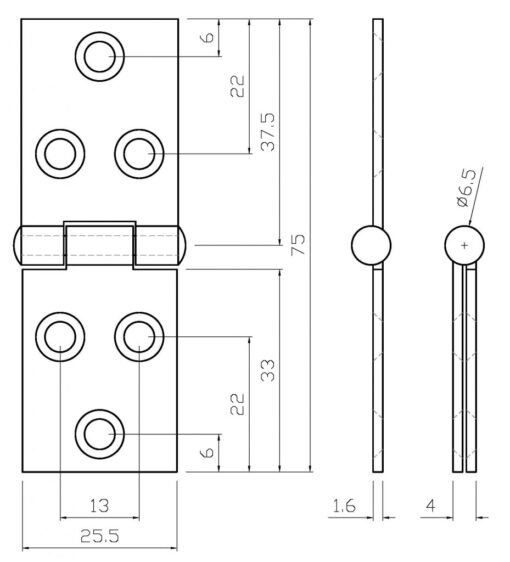

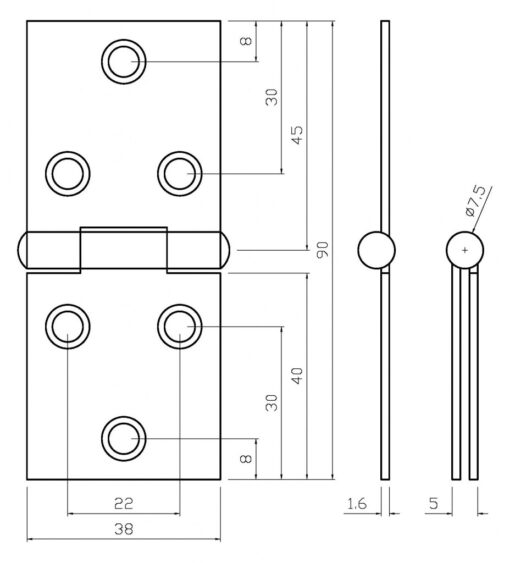

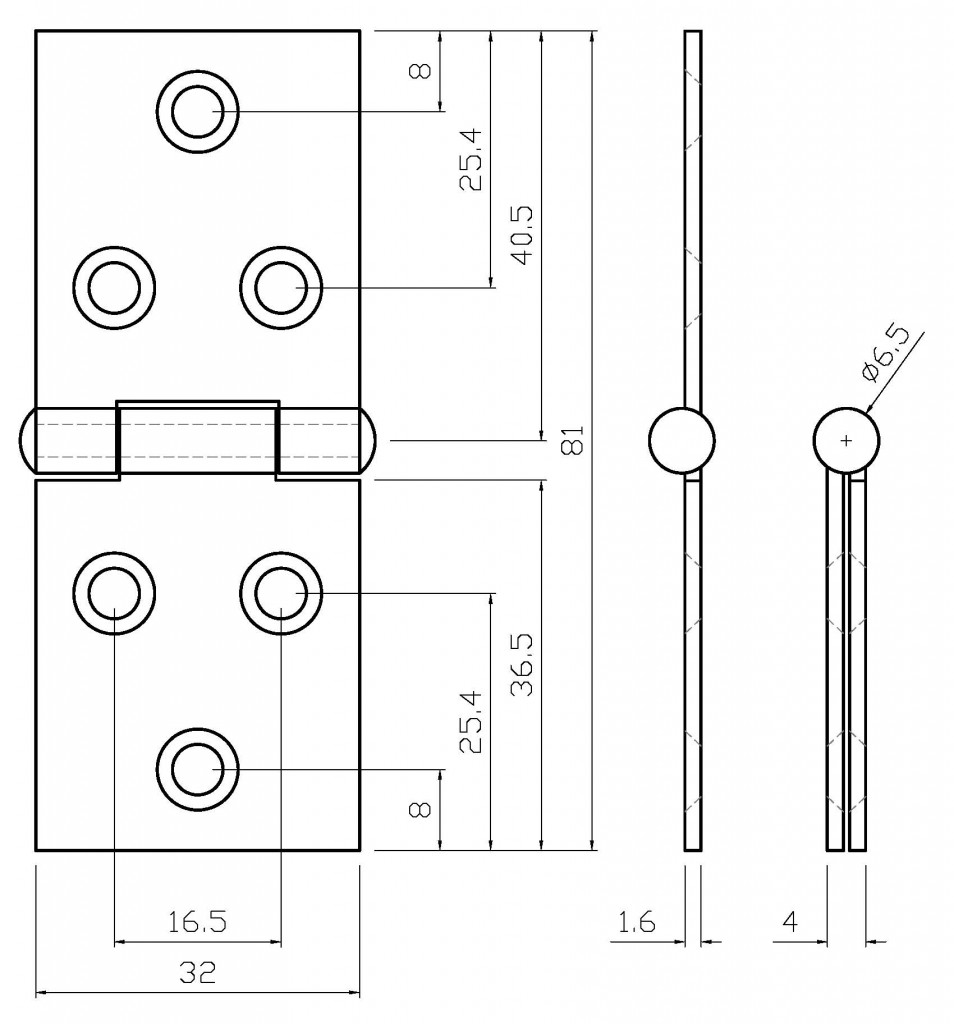

Size	25mm (1″)	31mm (1¼”)	38mm (1½”)	50mm (2″)
Size	25mm	31mm	38mm	50mm
Width Open	75mm	81mm	90mm	106mm
Thickness	1.6mm	1.6mm	1.6mm	1.8mm
Screw Holes	6	6	6	6
Bulk Packed	500	400	200	200
Self Coloured	4025 0 22 01	4031 0 22 01	4038 0 22 01	4050 0 22 01
Duty	Light	Light	Light	Light
Max. load (2 hinges fitted)	7kg	8.5kg	11.5kg	11.5kg
Max. load (3 hinges fitted)	10kg	12.5kg	17.5kg	17.5kg
Material	Mild Steel	Mild Steel	Mild Steel	Mild Steel
